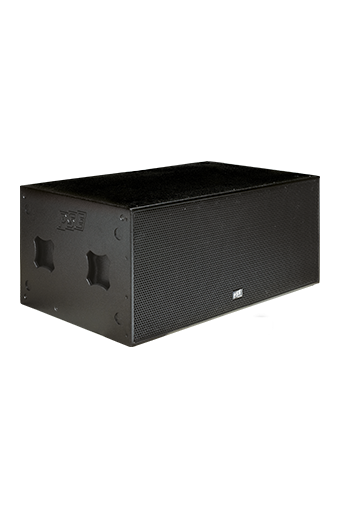

basssub LB-218i



basssub LB-218i          basssub LB-218i

LB-218i general description

Features LB-218i

  • 2x18" neodymium speaker (5"/125mm voice coil)
  • bass reflex design
  • 8 x M8 mounting points
  • 2 Neutrik speakon 4-pin
  • bass link function
  • perforated steel front grill powder coated
  • acoustic foam 4mm behind front grill
  • 8 x rubber feet
  • stackable in two directions
  • wood housing plywood
  • polyurea (PU) high scratch proof coating
  • optional regular painting black or white
  • optional front board with butterfly locks
  • optional detto. with 4 steering caster


basssub LB-218i

LB-218i specification
rated impedance (optional) 8Ω (4Ω,16Ω)
power handling capacity AES/peak* 3000W / 9000W*
available frequency response** 32Hz-180Hz
max. sound pressure level*** 140dB
LF-transducer rated size 2x18"
LF-transducer voice coil diameter 5"/125mm
LF-transducer magnet structure neodymium
dimension w/h/d in mm 1160/500/660
weight 72kg

* peak 10ms, with TD-8000 amplifier and LB-218i max controller setup
** -10dB with LB-218i FR controller setup
***1m free field, pink noise, crest factor 10dB, with TD-8000 and LB-218i SPL controller setup
