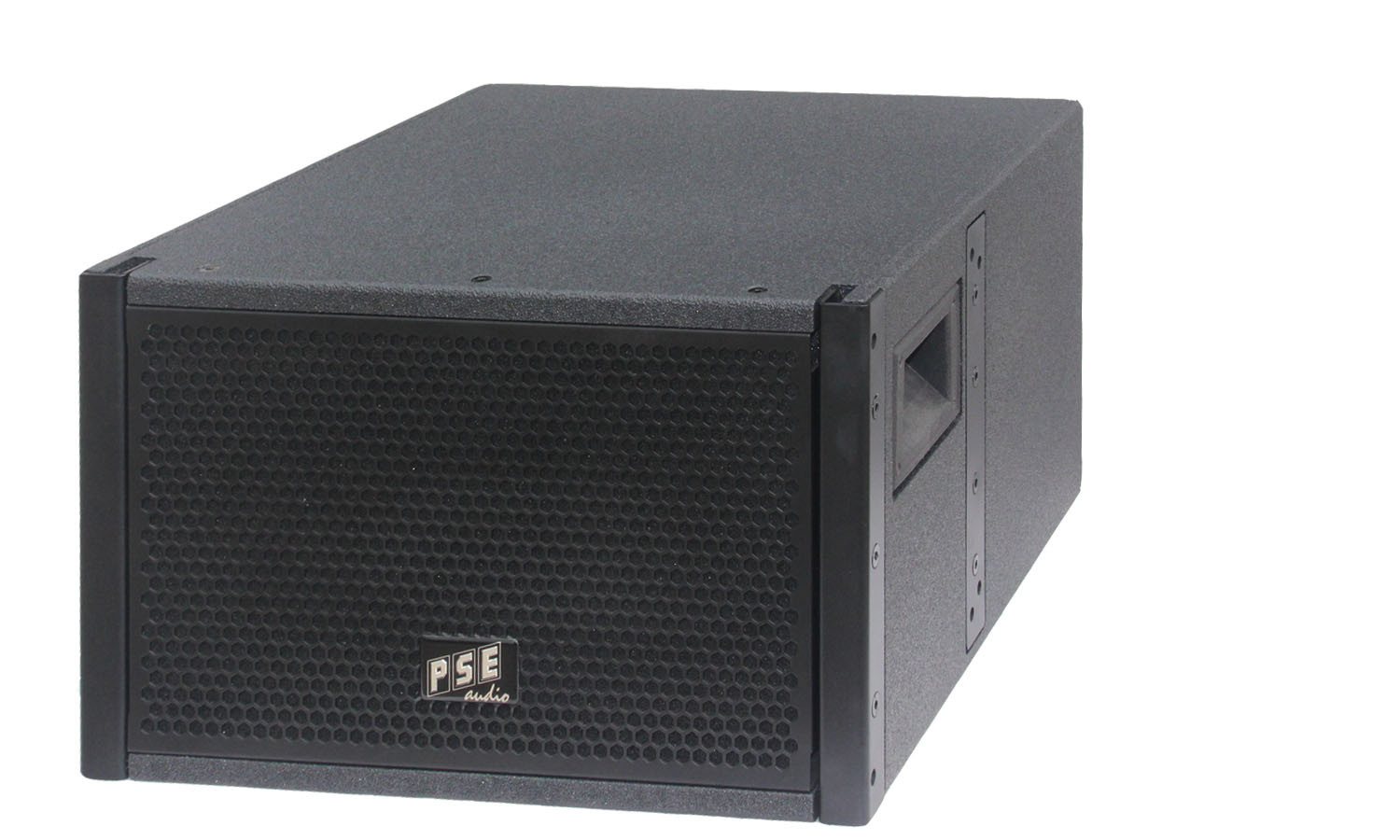

basssub B-802

subwoofer

B-802

basssub B-802          basssub B-802

B-802 general description

Features B-802

  • 2x8" speaker ferrite (2.5"/64mm voice coil)
  • bass reflex design
  • rigging (flying) hardware integrated
  • M20 pole mount plate
  • 2 Neutrik speakon 4-pin
  • bass link function
  • perforated steel front grill powder coated
  • acoustic foam 4mm behind front grill
  • 4 x rubber feet
  • stackable
  • wood housing plywood 15mm
    polyurea (PU) high scratch proof coating
  • optional regular painting black or white

Features B-802i

  • 2x8" speaker ferrite (2.5"/64mm voice coil)
  • bass reflex design
  • 8 x M8 mounting points
  • 2 Neutrik speakon 4-pin
  • bass link function
  • perforated steel front grill powder coated
  • acoustic foam 4mm behind front grill
  • 4 x rubber feet
  • stackable
  • wood housing plywood 15mm
  • texture painting black
  • optional texture painting white or other colours
  • optional plane matt painting black or white

Features B-802deluxe

  • 2x8" speaker ferrite (2.5"/64mm voice coil)
  • bass reflex design
  • binding post connection
  • perforated steel front grill powder coated
  • acoustic foam 10mm
  • wood housing 1. class MDF 15mm
  • high luster lacquer in black
  • optional high luster lacquer in white or colours
  • optional texture painting white or colours
  • optional plane matt painting black or white




basssub B-802

B-802 specification
rated impedance (optional) 8Ω (4Ω, 16Ω)
power handling capacity AES/peak* 700W / 2100W*
available frequency response** 45Hz-250Hz
max. sound pressure level*** 127dB
LF-transducer rated size 2x8"
LF-transducer voice coil diameter 2.5"/64mm
LF-transducer magnet structure Ferrite
dimension w/h/d in mm 480/280/480
weight 19.8kg

* peak 10ms, with TD-8000 amplifier and B-802 max controller setup
** -10dB with B-802 FR controller setup
***1m free field, pink noise, crest factor 10dB, with TD-8000 and B-802 SPL controller setup
