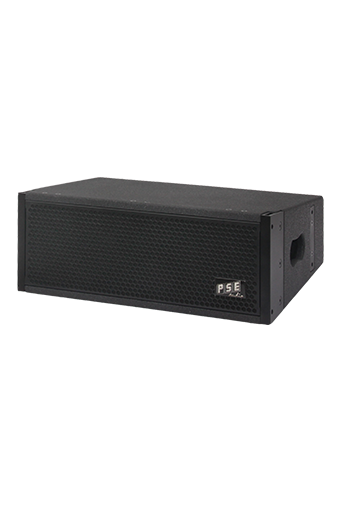

Line Array speaker cabinet
Vector-6
Vector-6 general description
Features Vector-6
- 2x6.5" speaker ferrite (1.35"voice coil)
- 1x1.75" (45mm) compression driver ferrite
- high frequency planar wave guide device
- wave guide directivity h110°/v10°
- horizontal symmetrical directivity
- curving angles 0°-10° in 1° steps
- 4-point rigging structure
- 2 Neutrik speakon 4-pin
- speaker signal link function
- perforated steel front grill powder coated
- acoustic foam 4mm behind front grill
- wood housing 15mm plywood
- polyurea (PU) high scratch proof coating
- optional regular painting black or white
Appliance Vector-6
- line array unit for mobile and touring PA
- line array unit for fix installation
Application Vector-6
- live events, live entertainment
- stadium broadcasting,
- discotheque and mobile disco event
- meeting halls broadcast system
extended system components
- LB-15 MK-II* Low-Mid extension (1x15")
- B-18 RV* 18" subwoofer (1x18")
- B-18 subwoofer (1x18")
- VB-218 subwoofer (2x18")
*with rigging hardware
Vector-6 specification
| rated impedance (optional) | 16Ω (8Ω) |
| operation mode | passive |
| power handling capacity passive AES/peak* | 300W / 900W* |
| available frequency response** | 80Hz-20kHz |
| max. sound pressure level*** | 127dB |
| directivity h x v**** | 110°x10° |
| LF-transducer rated size | 2x6.5" |
| LF-transducer voice coil diameter | 1.35"/35mm |
| LF-transducer magnet structure | ferrite |
| HF-compression driver rated size (VC) | 1.75"/45mm |
| HF-compression driver throat diameter | 1" |
| HF-compression magnet structure | ferrite |
| dimension w/h/d in mm | 530/210/300 |
| weight | 16kg |
* peak 10ms, with TD-8000 amplifier and Vector-6 max controller setup |
|
small variety of a wide range for bass cabinet extension |
||
