Galaxy series GS-10

Galaxy-series high end multifunction series

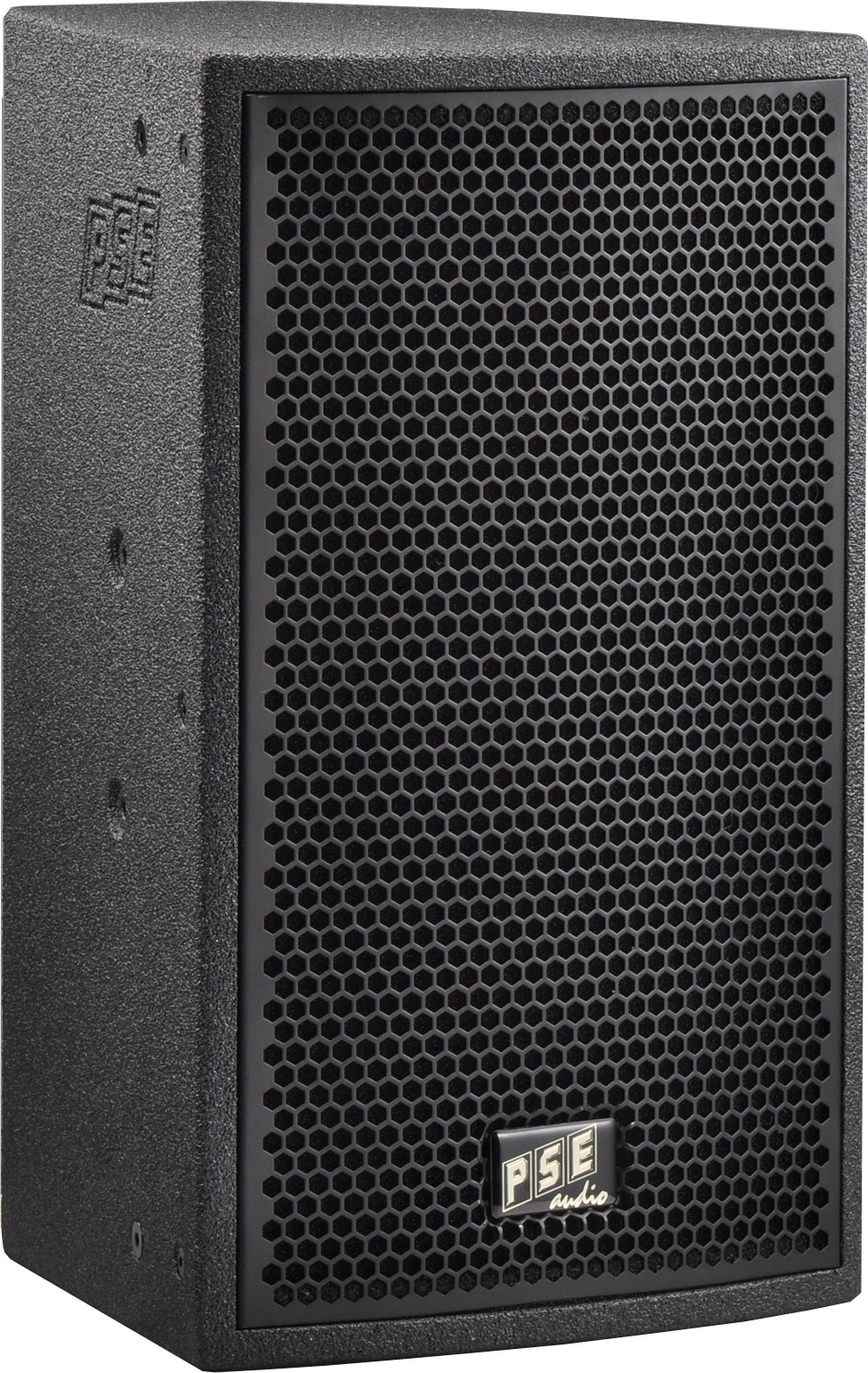

GS-10

Galaxy series GS-10          Galaxy series GS-10
GS-10 general description

Features GS-10

  • 1x10" speaker neodymium (75mm voice coil)
  • 1x1.75" (45mm) compression driver neodymium
  • high frequency horn 1" throat
  • horn directivity h90°/v60°
  • 90° turnable high frequency horn to v60°/h90°
  • multifunction housing
  • wedge angle 45°
  • tripod (pole mounting) flange
  • 18 M8 mounting points
  • 1 M10 mounting point
  • 1 multi gauge plate 360° / 5° steps
  • 2 Neutrik speakon 4-pin for passive
  • bass link function
  • high-mid link function
  • perforated steel front grill powder coated
  • acoustic foam 4mm behind front grill
  • wood housing plywood 15mm
  • polyurea (PU) high scratch proof coating

Application GS-10

  • discotheque, clubs, bars, entertainment
  • live events, live entertainment

Appliance GS-10

  • high-mid unit for fix installation
  • high-mid unit for mobile PA
  • fullrange PA cabinet
  • floor monitor
  • delay line



Galaxy series GS-10

GS-10 specification
rated impedance 8 Ω
operation mode passive
power handling capacity passive AES/peak* 500W / 1800W*
available frequency response** 65Hz-20kHz
max. sound pressure level*** 132dB
directivity (h x v) 90°/60° (90°rotatable)
LF-transducer rated sice 10"
LF-transducer voice coil diameter 75mm/3"
LF-transducer magnet structure neodymium
HF-compression driver rated sice (VC) 45mm/1.75"
HF-compression throat diameter 1"
HF-compression magnet structure neodymium
dimension h/w/d in mm 515/320/270
weight 14,5kg

* peak 10ms, with TD-8000 amplifier and GS-10 max controller setup
** -10dB with GS-10 FR controller setup
***1m free field, pink noise, crest factor 10dB, with TD-8000 and GS-10 SPL controller setup
