K-series high SPL output fully horn loaded cabinet series
K-3

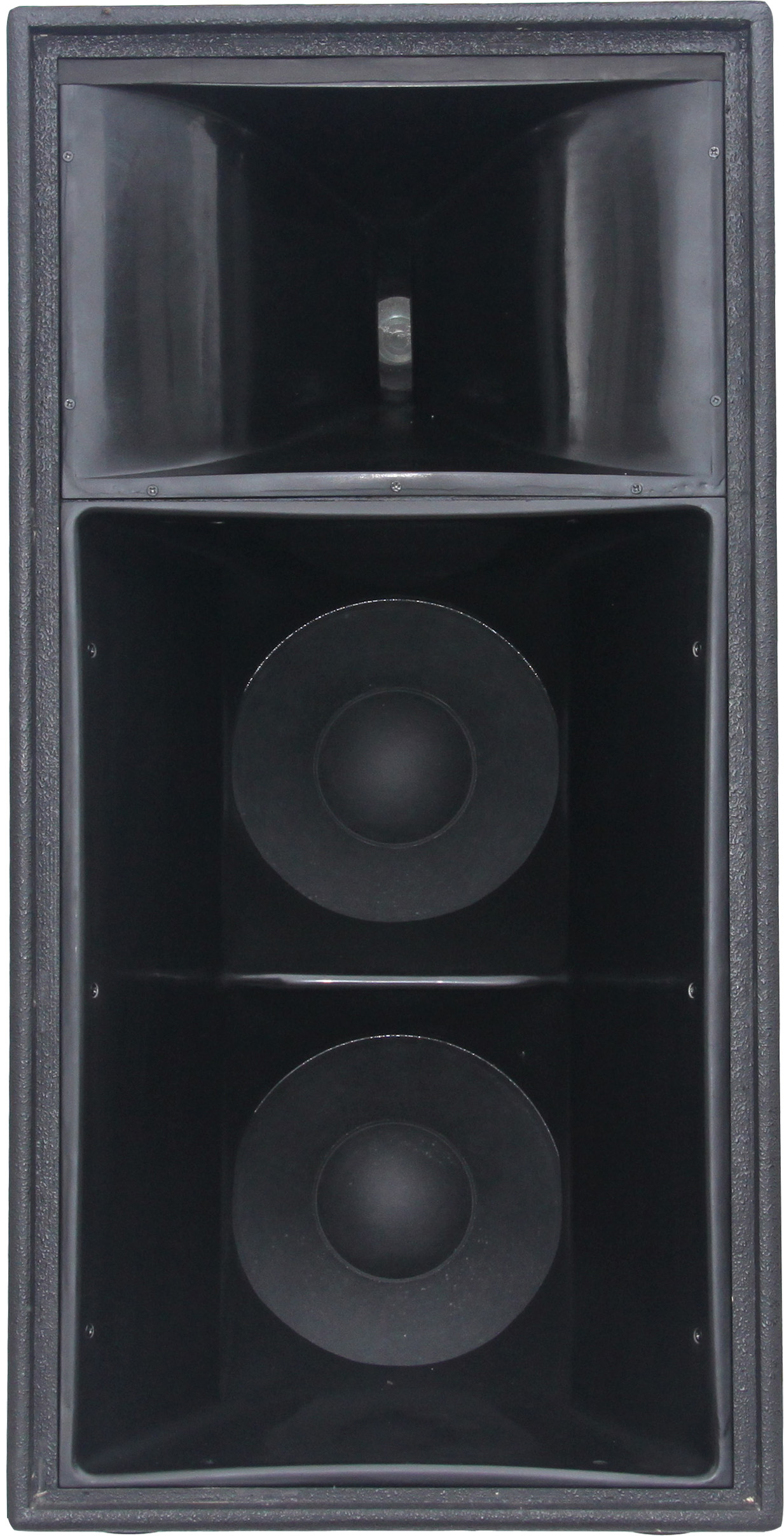

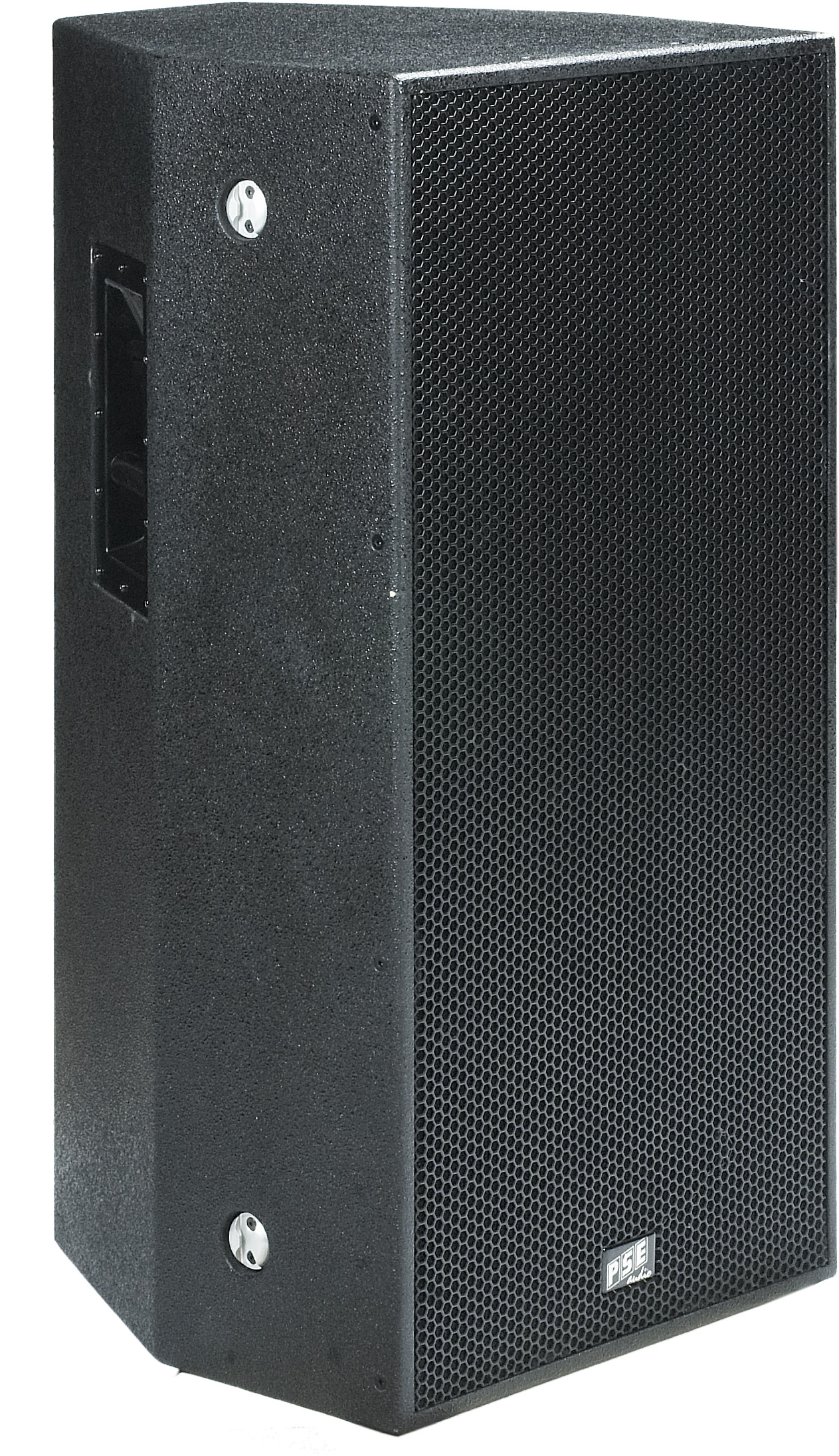

K-3 general description
Features K-3
- 2x12" speaker neodymium (76mm voice coil)
- 2x12" speaker hornloaded
- 1x4" (100mm) compression driver neodymium
- high frequency horn 2" throat
- horn directivity h60°/v40°
- housing cluster angle 30°
- 7 air-lock mounting points
- 2 Neutrik speakon 4-pin
- bi-amp
- cabinet link function
- perforated steel front grill powder coated
- acoustic foam 4mm behind front grill
- wood housing plywood 15mm, 27mm
- polyurea (PU) high scratch proof coating
Application K-3
- live events, live entertainment
- mobile disco
- discotheque
Appliance K-3
- high-mid unit for mobile and touring PA
- high-mid unit for fix installation
K-3 specification
| rated impedance | 8 Ω |
| operation mode switchable | bi-amp |
| power handling capacity midrange AES/peak* | 800W / 3200W* |
| power handling capacity HF AES/peak* | 100W / 300W* |

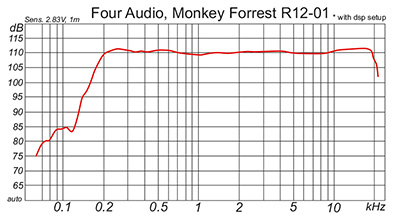

| available frequency response** | 130Hz-20kHz |
| max. sound pressure level*** | 145dB |
| directivity (h x v) | 60°/40° |
| midrange-transducer rated size | 2x12" |
| midrange-transducer voice coil diameter | 3" / 76mm |
| LF-transducer magnet structure | neodymium |
| HF-compression driver rated size (VC) | 4" / 100mm |
| HF-compression throat diameter | 2" |
| HF-compression magnet structure | neodymium |
| dimension h/w/d in mm | 1000/500/500 |
| weight | 51kg |
* peak 10ms, with TD-8000 amplifier and K-3 max controller setup |
|
