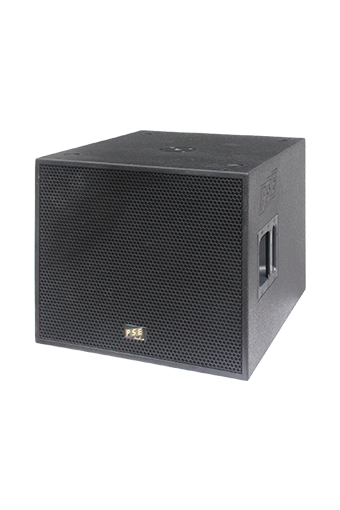

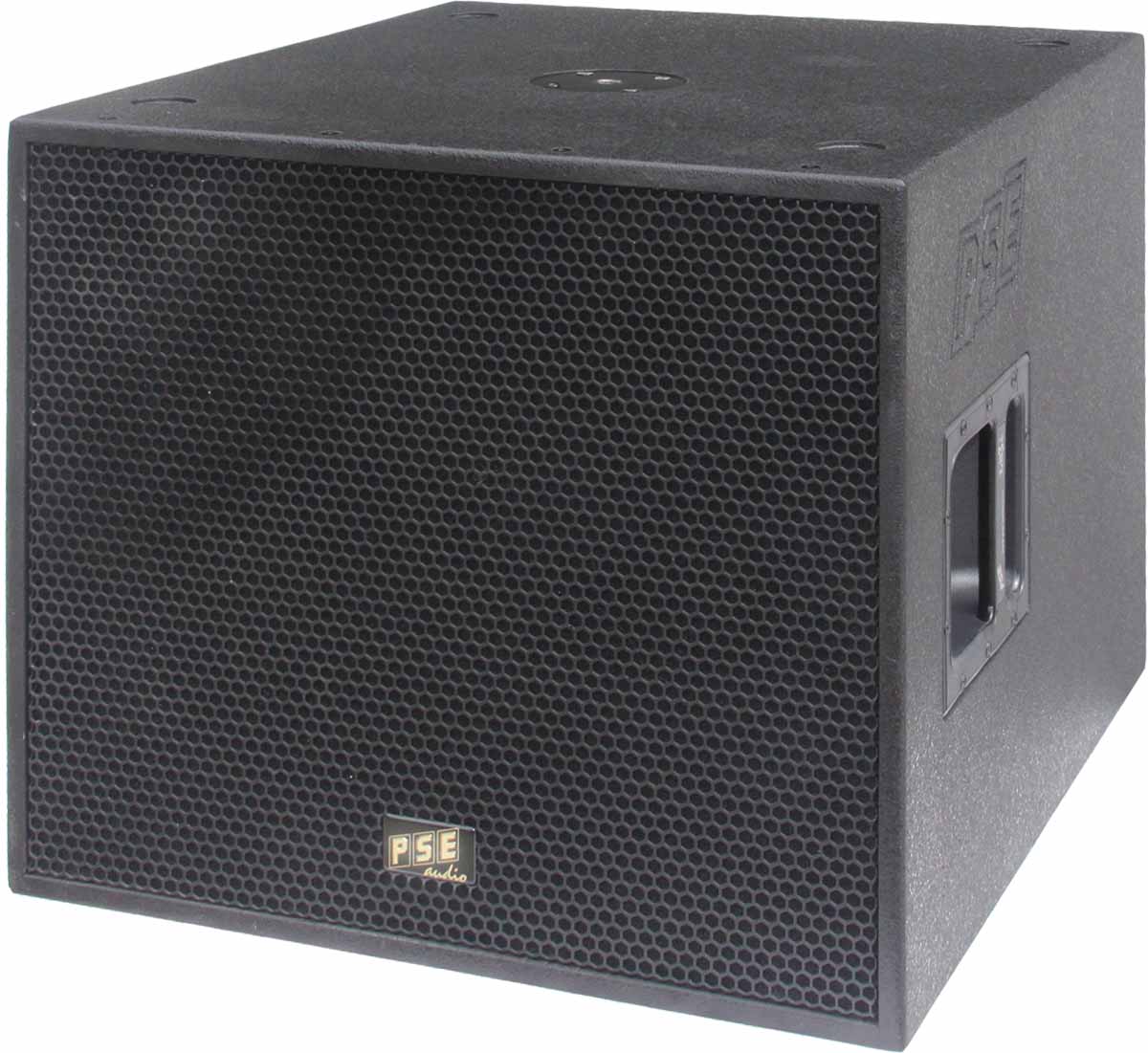

basssub LB-3i

subwoofer

LB-3i

basssub LB-3i          basssub LB-3i

LB-3i general description

Features LB-3i

  • 18" neodymium speaker (5"/125mm voice coil)
  • bass reflex design
  • 8 x M8 mounting points
  • M20 pole mount plate
  • 2 Neutrik speakon 4-pin
  • bass link function
  • perforated steel front grill powder coated
  • acoustic foam 4mm behind front grill
  • 4 x rubber feet
  • stackable
  • wood housing plywood
  • polyurea (PU) high scratch proof coating
  • optional regular painting black or white
  • optional front board with butterfly locks
  • optional detto. with 4 steering caster

basssub LB-3i



system 580

für stacking und rigging

LB-3i specification
rated impedance (optional) 8Ω (16Ω)
power handling capacity AES/peak* 1500W / 4500W*
available frequency response** 35Hz-180Hz
max. sound pressure level*** 137dB
LF-transducer rated size 18"
LF-transducer voice coil diameter 5"/125mm
LF-transducer magnet structure neodymium
dimension w/h/d in mm 580/500/660
weight 35.7kg

* peak 10ms, with TD-8000 amplifier and LB-3i max controller setup
** -10dB with LB-3i FR controller setup
***1m free field, pink noise, crest factor 10dB, with TD-8000 and LB-3i SPL controller setup
