EL -series satellite and fullrange series

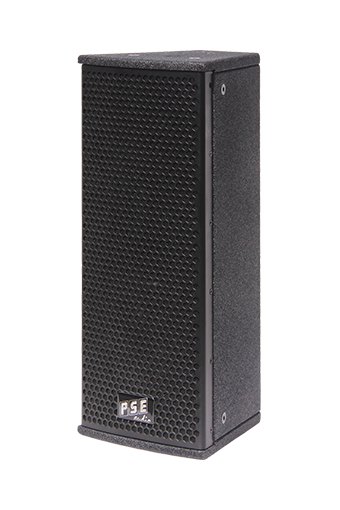

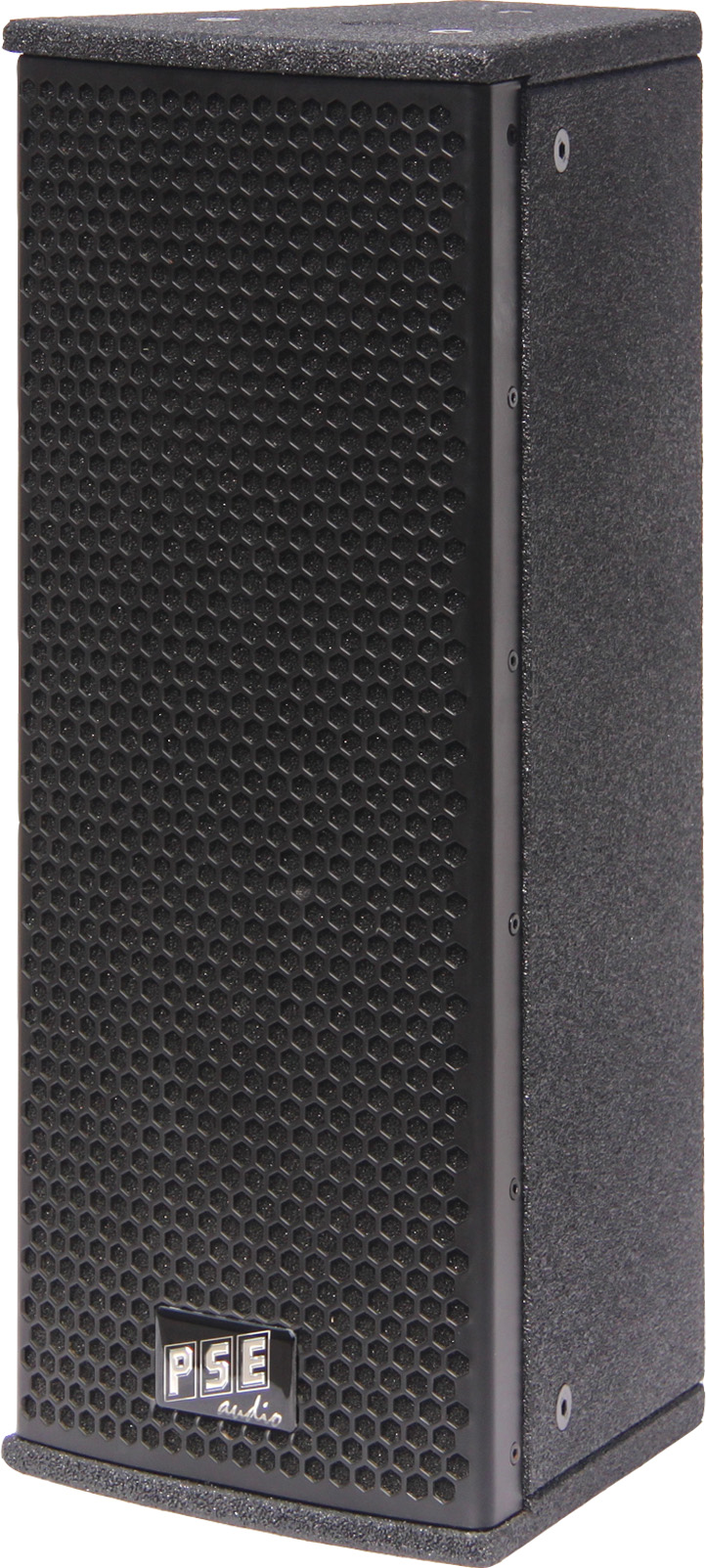

EL-26
EL-26 general description
Features EL-26
- 2 x 6,5" Ferrit speaker (35mm Schwingspule)
- 1 x 1,35"(34mm) Ferrit Druckkammertreiber
- Hochtonhorn mit 1" Halsöffnung
- nominale Hornabstrahlung h90°/v60°
- 90° drehbares Hochtonhorn v60°/h90°
- Trapezgehäuse
- 2 + 12 M8 Befestigungspunkte
- 2 Neutrik speakon 4-pin für passive Nutzung
- bass link Funktion
- high/mid link Funktion
- Frontgrill aus pulverbeschichtetem Lochblech
- 4mm Akustikschaumstoff hinter dem Frontgrill
- Gehäuse aus 15mm 1.Klasse MDF
- Oberfläche: polyurea (PU) schwarz,
- hoch kratzfeste Strukturbeschichtung
- optional traditioneller Strukturlack
- in schwarz oder weiß
Application EL-26
- Discotheken, Clubs, Bars, Entertainment
- live Events, live Veranstaltungen
Appliance EL-26
- Topteil (high-mid) für Festinstallationen
- Background Beschallung
- Delay line
EL-26 specification
| rated impedance | 8 Ω |
| operation mode | passive |
| power handling capacity passive AES/peak* | 300W / 900W* |
| available frequency response** | 90Hz-20kHz |
| max. sound pressure level*** | 126dB |
| directivity (h x v) | 90°/60° (90°rotatable) |
| LF-transducer rated size | 2 x 6.5" |
| LF-transducer voice coil diameter | 35mm/1.35" |
| LF-transducer magnet structure | ferrite |
| HF-compression driver rated size (VC) | 34mm/1.35" |
| HF-compression throat diameter | 1" |
| HF-compression magnet structure | ferrite |
| dimension h/w/d in mm | 515/210/210 |
| weight | 13kg |
* peak 10ms, with TD-8000 amplifier and EL-26 max controller setup |
|
