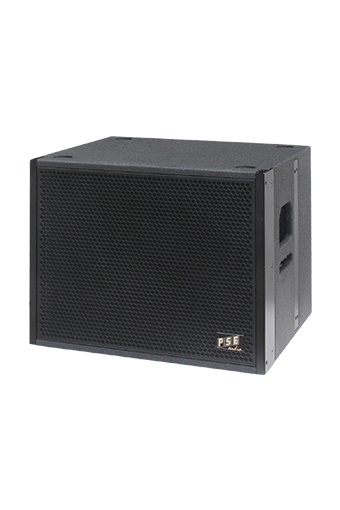

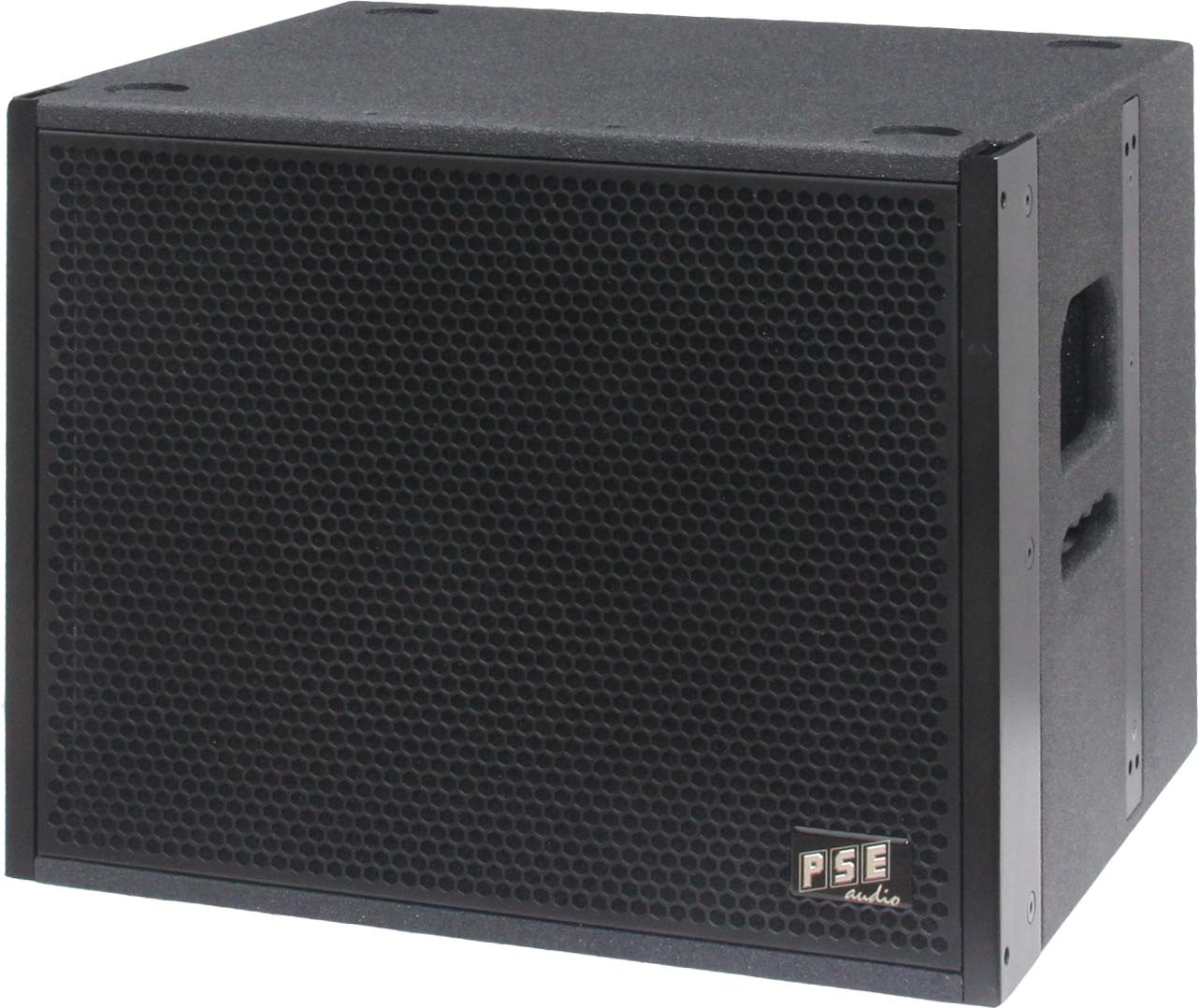

subwoofer
LB-15MK-II
LB-15MK-II general description
Features LB-15MK-II
- 15" Speaker (4"/100mm voice coil)
- bass reflex design
- rigging (flying) hardware integrated
- M20 pole mount plate
- 2 Neutrik speakon 4-pin
- bass link function
- perforated steel front grill powder coated
- acoustic foam 4mm behind front grill
- 4 x rubber feet
- stackable
- wood housing plywood
- polyurea (PU) high scratch proof coating
- optional regular painting black or white
LB-15MK-II specification
| rated impedance (optional) | 8Ω (16Ω) |
| power handling capacity AES/peak* | 1000W / 3000W* |
| available frequency response** | 45Hz-250Hz |
| max. sound pressure level*** | 132dB |
| LF-transducer rated size | 15" |
| LF-transducer voice coil diameter | 4"/100mm |
| LF-transducer magnet structure | ferrite |
| dimension w/h/d in mm | 530/430/450 |
| weight | 28kg |
* peak 10ms, with TD-8000 amplifier and LB-15MK-II max controller setup |
|
