subwoofer
SB-218

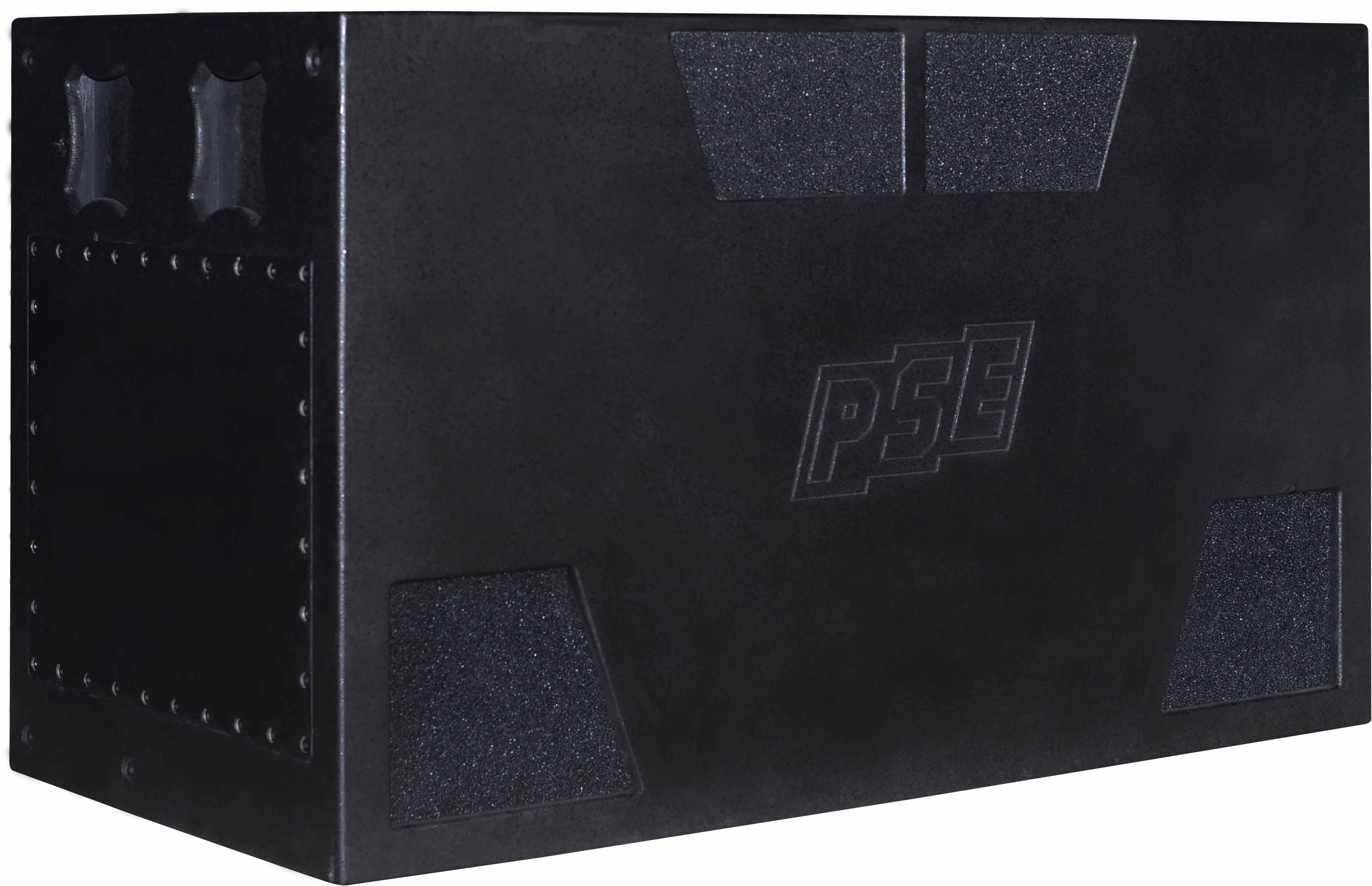

SB-218 general description
Features SB-218
- 2x18" neodymium speaker (5"/125mm voice coil)
- bandpass design
- 12 x M8 mounting points
- 2 Neutrik speakon 4-pin
- bass link function
- perforated steel front grill powder coated
- acoustic foam 4mm behind front grill
- 4 x rubber feet
- stackable
- wood housing plywood
- polyurea (PU) high scratch proof coating
- optional regular painting black or white
SB-218 specification
| rated impedance (optional) | 8Ω (4Ω,16Ω) |
| power handling capacity AES/peak* | 3000W / 9000W* |
| available frequency response** | 28Hz-120Hz |
| max. sound pressure level*** | 137dB |
| LF-transducer rated size | 2x18" |
| LF-transducer voice coil diameter | 5"/125mm |
| LF-transducer magnet structure | neodymium |
| dimension w/h/d in mm | 1200/700/600 |
| weight | 93kg |
* peak 10ms, with TD-8000 amplifier and SB-218 max controller setup |
|
