Galaxy-GX-series high end multifunction coaxial series
GX-8

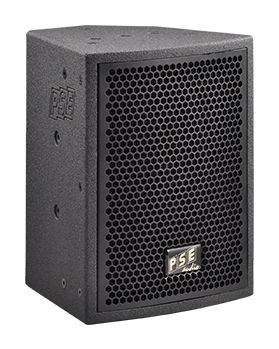

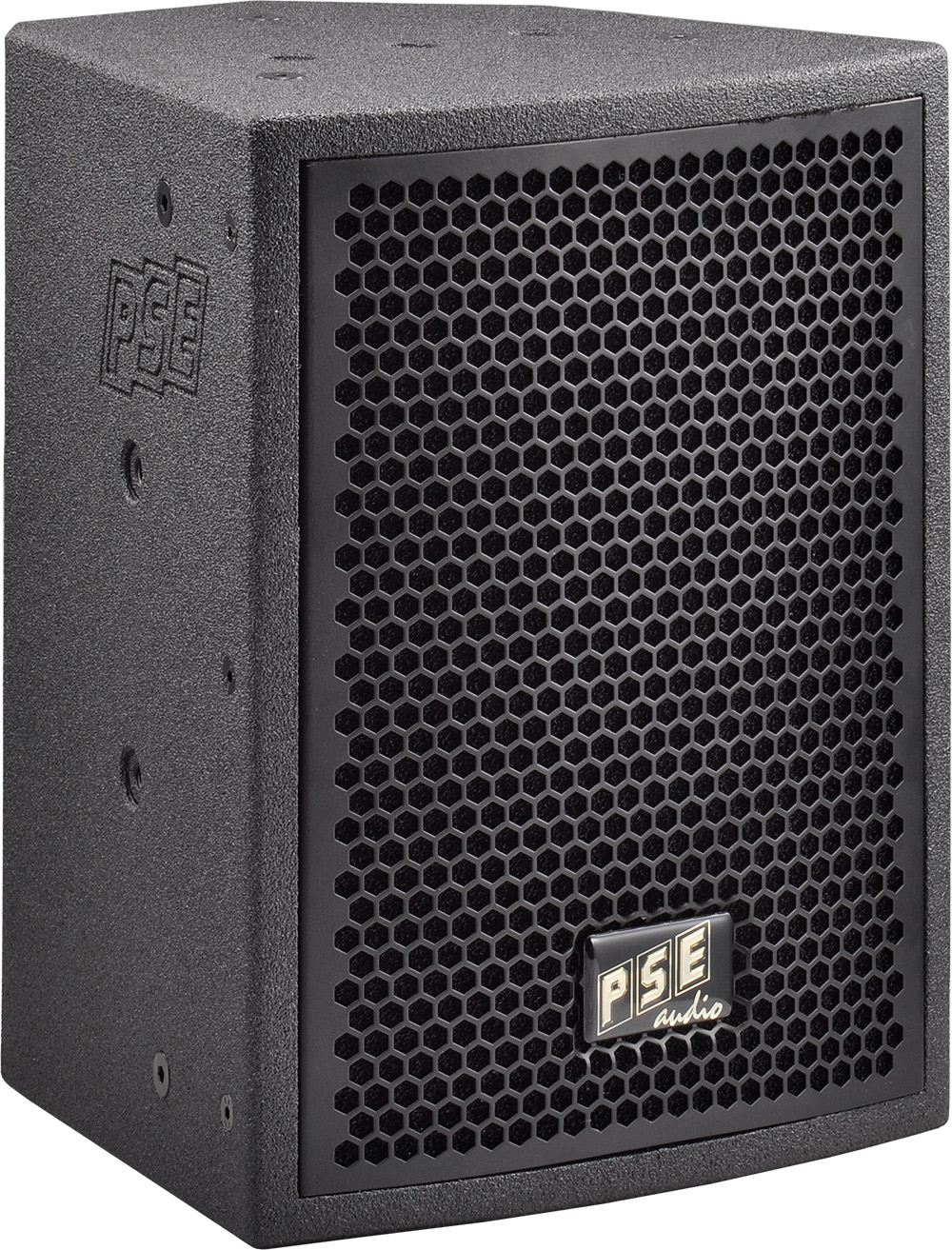

GX-8 general description
Features GX-8
- 1x8"/1.35" coaxial speaker neodymium
- 8" transducer 52mm /2" voice coil
- 8" transducer neodymium magnet
- compression driver 1.35"/34mm voice coil
- compression driver neodymium magnet
- high frequency horn 1" throat
- horn directivity 80° conical
- multifunction housing
- wedge angle 45°
- tripod (pole mounting) flange
- 18 M8 mounting points
- 1 M10 mounting point
- 1 multi gauge plate 360° / 5° steps
- 2 Neutrik speakon 4-pin for passive
- bass link function
- high-mid link function
- perforated steel front grill powder coated
- acoustic foam 4mm behind front grill
- wood housing plywood 15mm
- polyurea (PU) high scratch proof coating
Application GX-8
- discotheque, clubs, bars, entertainment
- live events, live entertainment
Appliance GX-8
- high-mid unit for fix installation
- high-mid unit for mobile PA
- fullrange PA cabinet
- floor monitor
- delay line
GX-8 specification
| rated impedance | 8 Ω |
| operation mode | passive |
| power handling capacity passive AES/peak* | 300W / 900W* |
| available frequency response** | 68Hz-20kHz |
| max. sound pressure level*** | 127dB |
| directivity (h x v) | 80° conical |
| LF-transducer rated size | 8" |
| LF-transducer voice coil diameter | 52mm/2" |
| LF-transducer magnet structure | neodymium |
| HF-compression driver rated size (VC) | 34mm/1,35" |
| HF-compression throat diameter | 1" |
| HF-compression magnet structure | neodymium |
| dimension h/w/d in mm | 360/275/250 |
| weight | 9,2kg |
* peak 10ms, with TD-8000 amplifier and GX-8 max controller setup |
|
